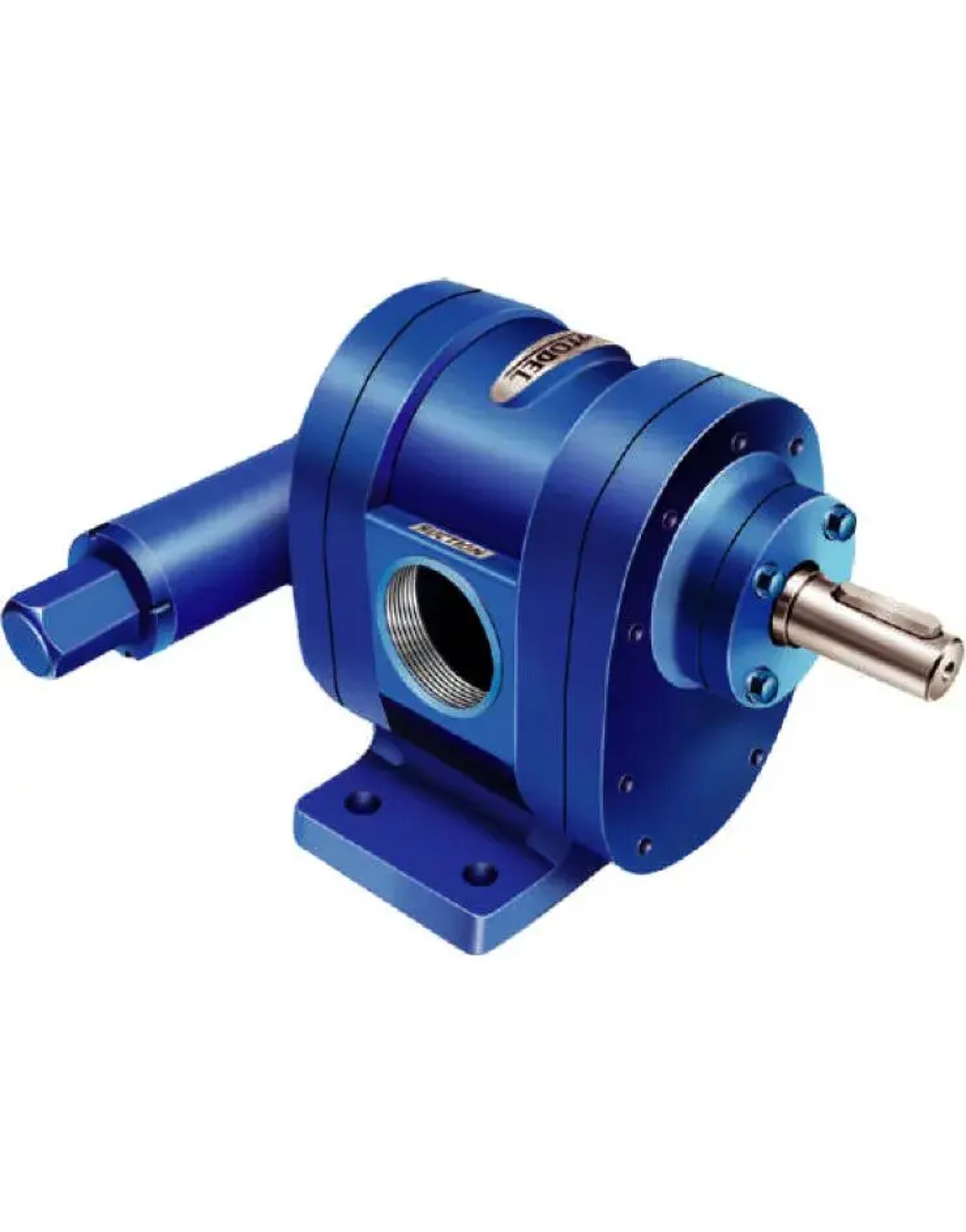

ROTODEL Rotary Gear Pump – Type SPN / SP-II

The ROTODEL SPN / SP-II rotary gear pump is engineered with a robust and durable construction, featuring a uniquely optimized design for high performance and reliability.

The pump utilizes single helical impeller gears, precision-cut using a hob, and mounted on a hardened carbon steel shaft. This shaft is supported by heavy-duty ball bearings, which are housed within a machined casing and mounted on a wear-resistant plate.

The front cover incorporates a stuffing box equipped with either an oil seal or mechanical seals, ensuring effective sealing and minimal leakage. The rear cover includes a well-designed, integrated pressure relief valve for enhanced operational safety.

The pump is fitted with horizontally oriented BSP inlet and outlet ports, facilitating easy installation and efficient fluid flow.

Why Choose Rotodel?

End users in industries like petrochemicals, paints, lubricants, sugar, and food processing often choose Rotodel rotary gear pumps. These pumps are known for their ability to handle thick fluids, abrasive slurries, and corrosive chemicals. They provide reliable performance in various applications.

The pumps are engineered with precisely machined gear profiles and minimal clearances, ensuring volumetric efficiency and reduced slip even at higher pressures.

With options in cast iron, stainless steel, and alloy steel construction, Rotodel pumps provide compatibility with a wide range of media, from heavy fuel oils and bitumen to molasses, glycerin, and edible oils, while maintaining steady flow rates across varying viscosities.

Additionally, Rotodel pumps are designed for rugged operating conditions where reliability and ease of service are critical.

Their compact positive displacement mechanism, combined with self-priming capability and bi-directional flow, makes them suitable for both transfer and circulation duties.

Compared to other brands, Rotodel offers a favorable balance of durability, cost-effectiveness, and spare part availability, with localized service support that minimizes downtime.

This strong design, along with flexible materials and different capacity options, makes Rotodel a smart and efficient choice. Users can rely on it for long-term use without losing performance quality.

Sizes

From 1/2" to 2" BSP

Capacity

From 15 LPM to 225 LPM

Pressure

Upto 35 kg/cm² (498 PSI)

Viscosity

Upto 2500 CST

Temperature

Upto 250 °C

Mounting

Foot

Direction of Rotation

Bi-Directional

Materials

+ Casing : CI / CS
+ Gears : EN 8 / EN 8D
+ Shaft : EN 9 / EN 8D
+ Bushing : Sintered Bronze / White Metal / Ball Bearing

Sealing

+ Oil Seal
+ Mechanical Seal
+ Gland Packing



Boiler Firing

Lubricant Manufacturers

Tank Plant Construction

Lubricating Oil Systems

Metal Forming Machines

Machine Building Industry

Waste Oil Disposal

Machine Tools

Waste Oil Treatment

Furnace Firing

Waste Oil Transport



Transfer Systems







Clean Lube Oil

Crude Oil

HFO

Dirty Lube Oil

RFO

HSD

Furnace Oil

Kerosene

Gear Oil

LDO

Hydraulic Oil



ASTM & SAE Lube Oil







Pump Model

Size

Port Size (BSP)

Capacity

Speed** (RPM)







LPM

US GPM

M3/Hr



SPN 050

-

1/2"

15.00

4.00

0.90

1440

SPN 075

M

3/4"

25.00

6.58

1.50

1440

SPN 075

L

3/4"

35.00

9.20

2.10

1440

SPN 100

-

1"

50.00

13.15

3.00

1440

SPN 125

M

1 1/4"

60.00

15.80

3.60

1440

SPN 125

L

1 1/4"

75.00

19.75

4.50

1440

SPN 150

S

1 1/2"

100.00

26.30

6.00

1440

SPN 150

M

1 1/2"

125.00

32.80

7.50

1440

SPN 200

S

2"

150.00

39.47

9.00

1440

SPN 200

M

2"

200.00

52.63

12.00

1440

SPN 200

L

2"

225.00

59.21

13.51

1440
