Feature | Details |
|---|---|
Size | 3” Victaulic |
Capacity | 40 m³/hr |
Pressure | Up to 21 kg/cm² (300 PSI) |
Viscosity | Up to 10,000 CST |
Temperature Range | -50°C to 220°C |
Mounting | Foot (for ISO series) Overhung (for API series) |
Rotation | Bi-Directional |
.png?format=pjpeg&width=1600&quality=80&auto=webp)
.png?format=pjpeg&width=1600&quality=80&auto=webp)
.png?format=pjpeg&width=1600&quality=80&auto=webp)
.png?format=pjpeg&width=1600&quality=80&auto=webp)
.png?format=pjpeg&width=1600&quality=80&auto=webp)
.png?format=pjpeg&width=1600&quality=50&auto=webp)
.png?format=pjpeg&width=1600&quality=50&auto=webp)
.png?format=pjpeg&width=1600&quality=50&auto=webp)
.png?format=pjpeg&width=1600&quality=50&auto=webp)
.png?format=pjpeg&width=1600&quality=50&auto=webp)
Engineered for Foam Extinguishing Systems & Firefighting Applications

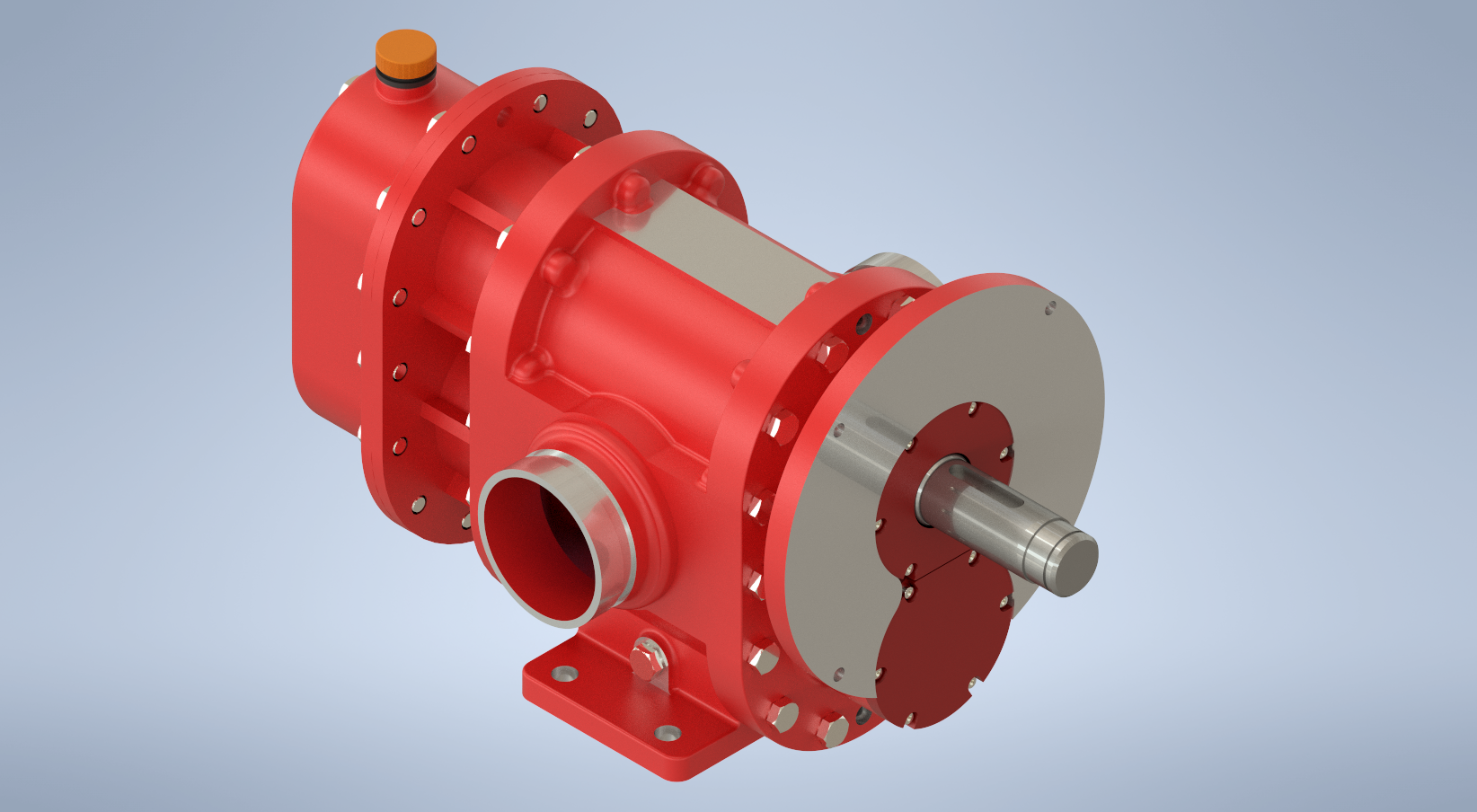

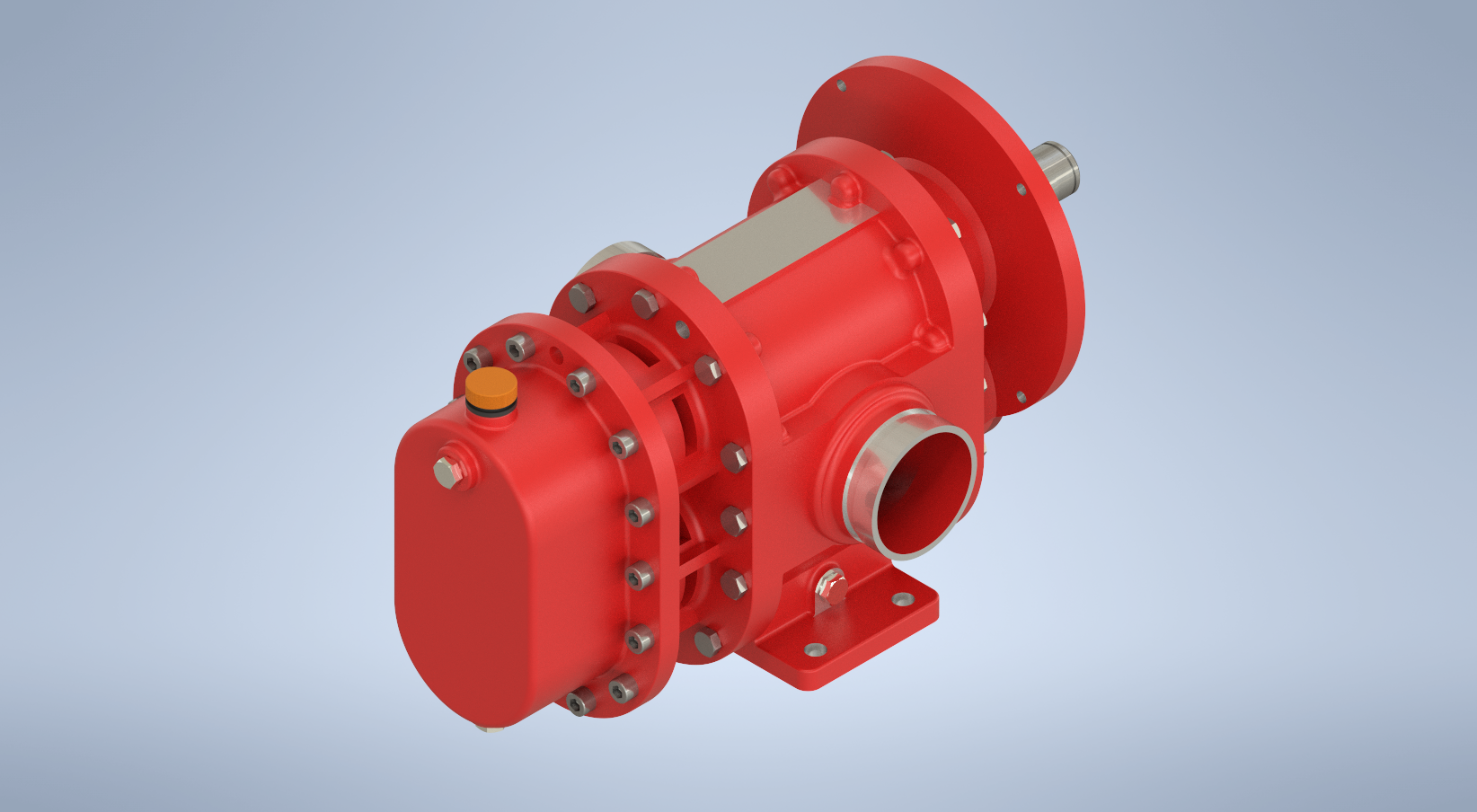

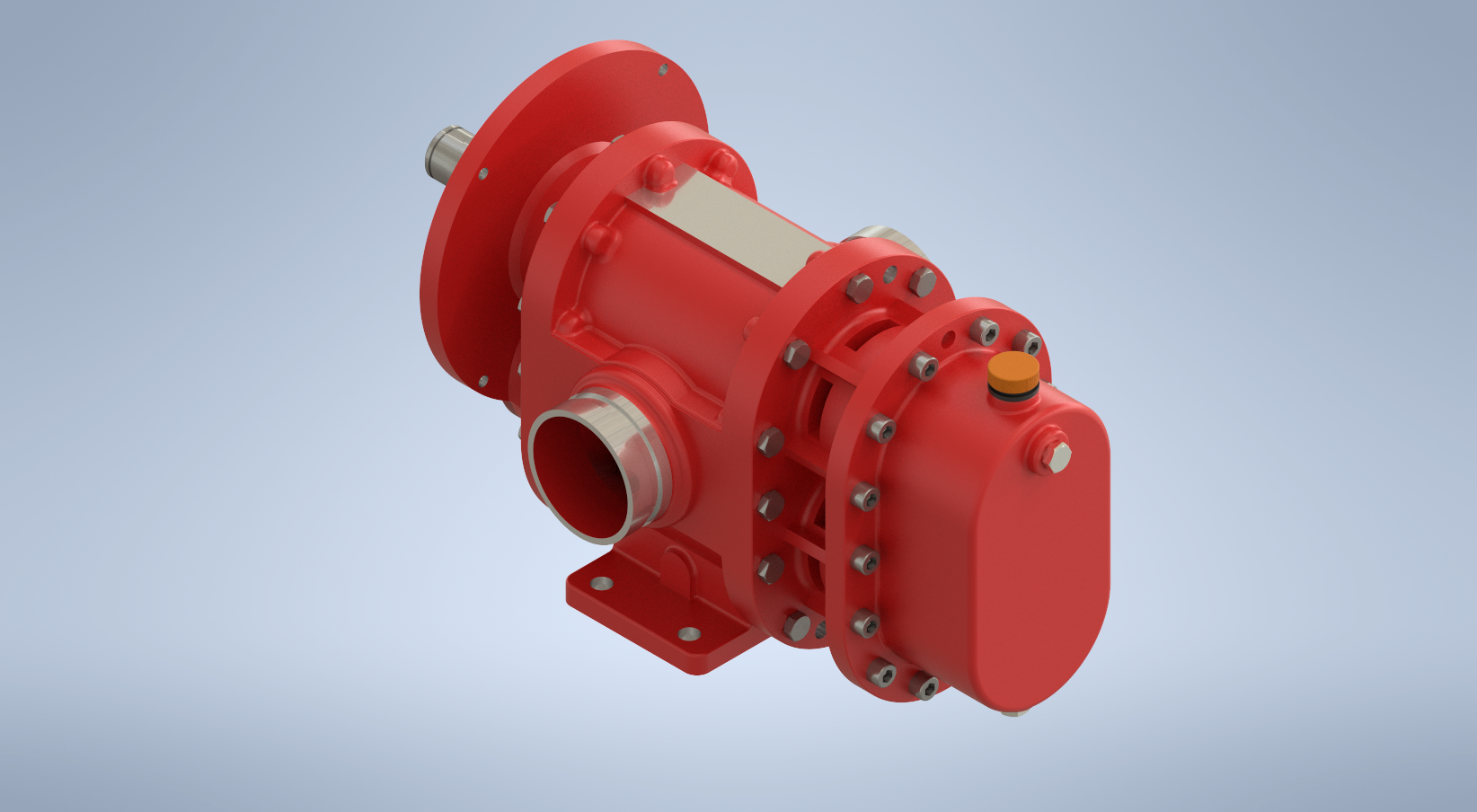

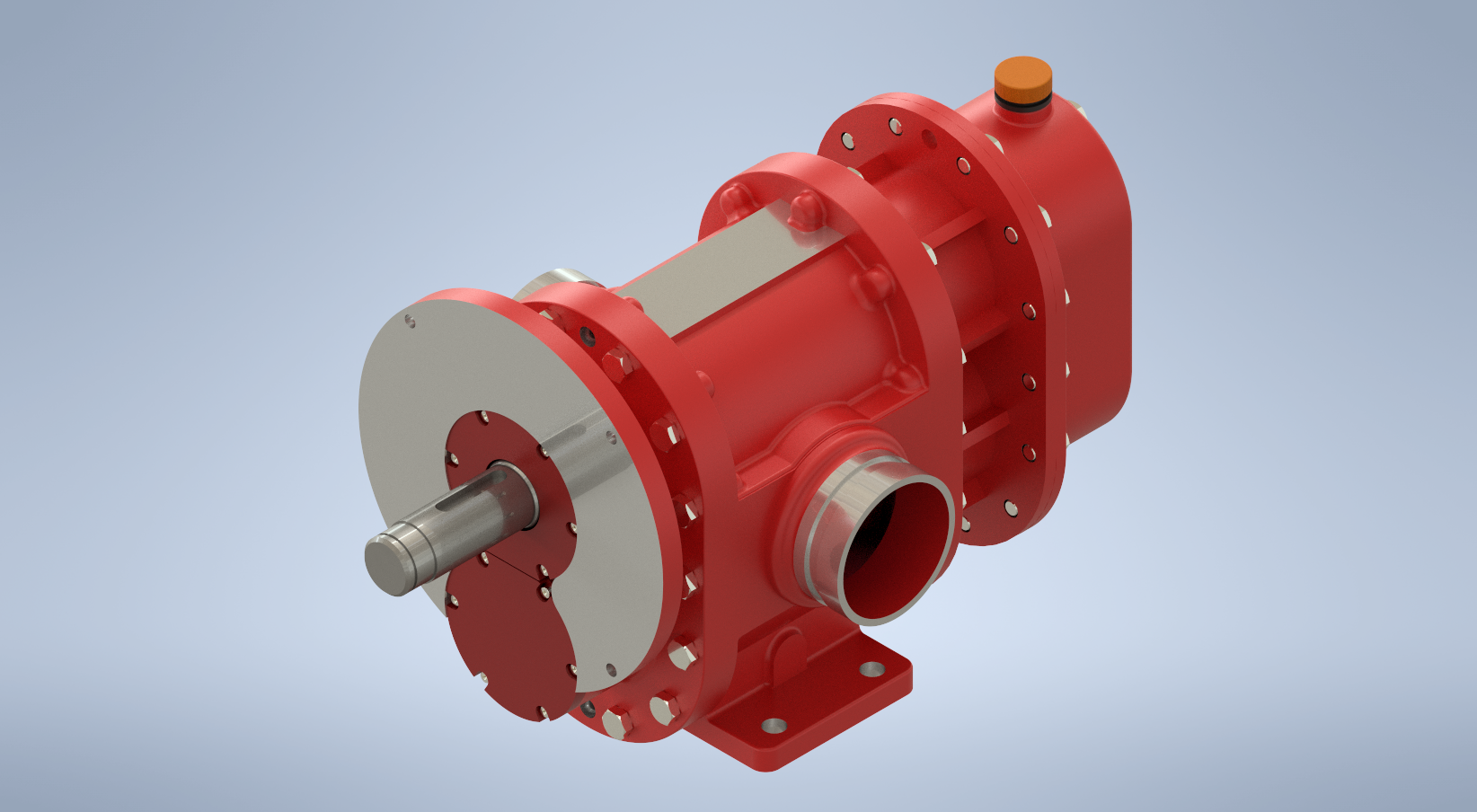

The ROTODEL RDZXIR is a high-performance rotary gear pump built for demanding firefighting and industrial fluid transfer applications. With its bi-directional operation, self-priming capability, and robust construction, it ensures reliable performance across a wide range of viscosities and temperatures. Whether you're handling foam concentrates or industrial chemicals, RDZXIR delivers consistent flow and pressure with minimal maintenance.
Crafted from premium materials and engineered for durability:
- Casing: ASTM A216 Gr.WCB for Cost Effective Solutions & ASTM A351 CF8M for SS-316 for corrosion resistance.
- Gears: Double Helical Gears (EN-353 / SS-316L / Bronze) For Demanding Applications.
- Shaft: SS-431 / SS-316L, Nitride & ground for extended life.
- Bearings: Double Row Angular Contact for high-load capacity.
- Bushings: Bronze for Easy and Cost-effective maintenance.
- Timing Gears: Hardened Alloy Steel for precision synchronization.
- Sealing Options: Oil Seal / Mechanical Seal for leak-free performance
- Relief Valve: Integrated pressure relief for system protection
- Oil & Gas / Petrochemical Products (Gasoline / Diesel)
- Chemical Handling (Acids / Industrial Chemicals)
- Cooling Systems (Distilled water / process water)
- Loading & Unloading Operations
- Firefighting foam
- Marine and offshore operations
- Aviation fuel systems
- Foam: AFFF / AR-AFFF
- Chemicals: Compatible with a wide range of industrial chemicals
- Self-Priming Capability: Ensures quick startup and reliable suction even in dry conditions.
- Bi-Directional Flow: Flexible installation and operation in both directions.
- Wide Fluid Compatibility: Handles foam concentrates (AFFF/AR-AFFF) and a variety of chemicals.
- High Temperature & Viscosity Tolerance: Operates efficiently across extreme ranges.
- Heavy-Duty Bearings & Shaft Design: Built for continuous-duty firefighting and industrial use.
- Versatile Drive Options: Compatible with electric motors, diesel engines, and hydraulic motors.
