Sizes | From 1/2" to 6" NB |
Capacity | From 8 LPM to 2083 LPM |
Pressure | Upto 21 kg/cm² |
Viscosity | 10000 CST |
Temperature | Upto 350 °C |
Mounting | Horizontal / Vertical |
Direction of Rotation | Bi-Directional |
Materials | + Pump : CI / CS / SS
|
Pump Sealings | + Oil Seal
|

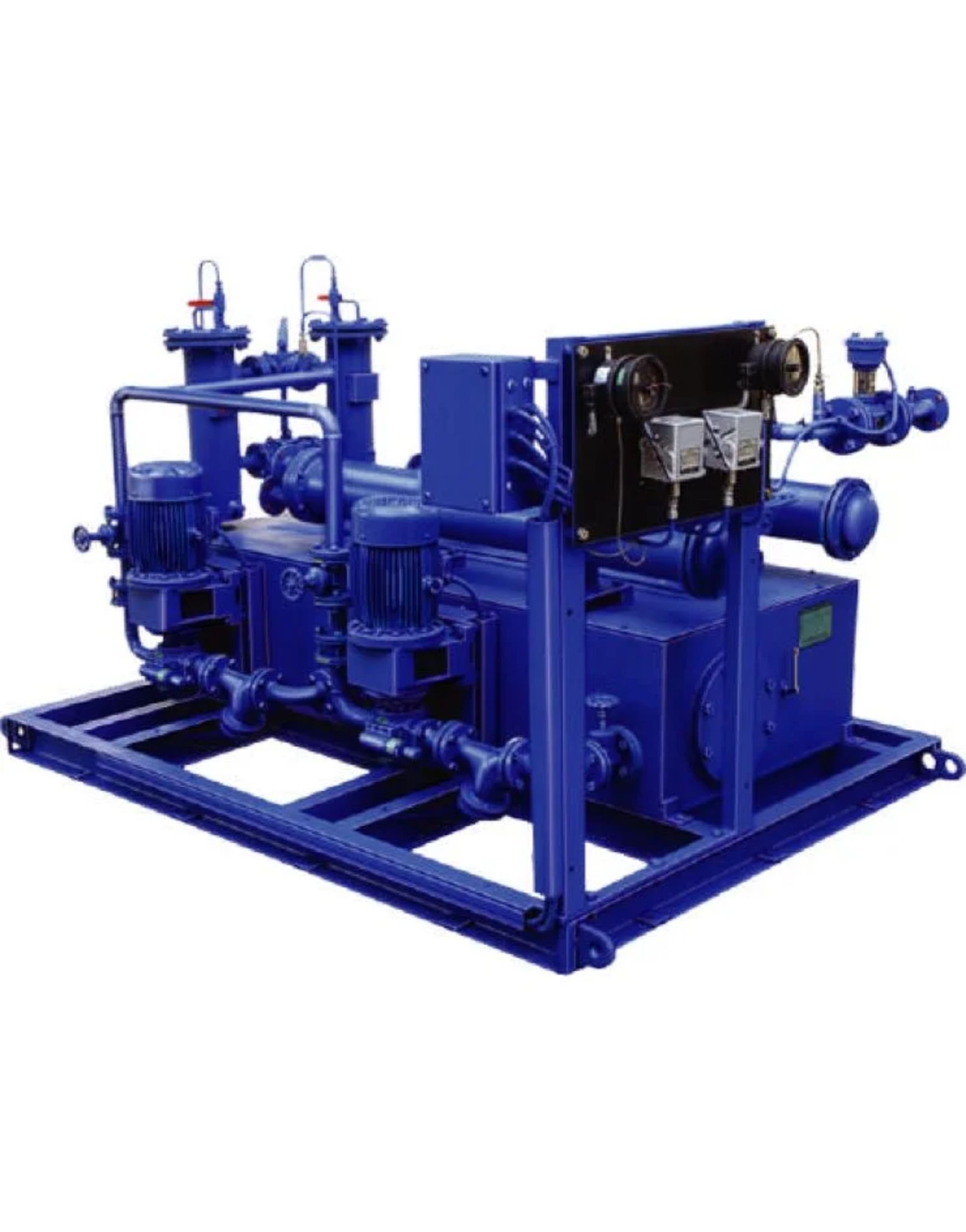

The Forced Lubrication System is designed for Cooling & Filtering of Oil thereby maintaining the oil Temperature as per the customer’s requirements and also reducing the equipment wear. All the Instruments in the skid can be connected with PLC-Based control panel which ensures the set parameters such as pressure, flow etc., are maintained with integrated safety by raising alarms or shutdown sequences in case of specific problems. The FLS can be customised for space saving utilizing the horizontal and vertical mounting options suited to the field conditions.
For Cooling and Filtration of Oil
Gear Oil | SAE Oil | Lube Oil |
Lube Oil (ISO VG 32) | Lube Oil (ISO VG 36) | Lube Oil (ISO VG 46) |
Lube Oil (ISO VG 100) | Lube Oil (ISO VG 150) | Lube Oil (ISO VG 200) |
Lube Oil (ISO VG 220) | Lube Oil (ISO VG 320) | Lube Oil (ISO VG 460) |
Lube Oil (ISO VG 680) | Lube Oil (ISO VG 1000) | Lube Oil (ISO VG 1500) |
- Cement Industry
- Steel Plant
- Sugar Industry
- Refinery
- Gear Box Manufacturer
- Compressor Manufacturer
- Centrifugal Seal Lubrication
- Turbine Industries
- Power Plant
