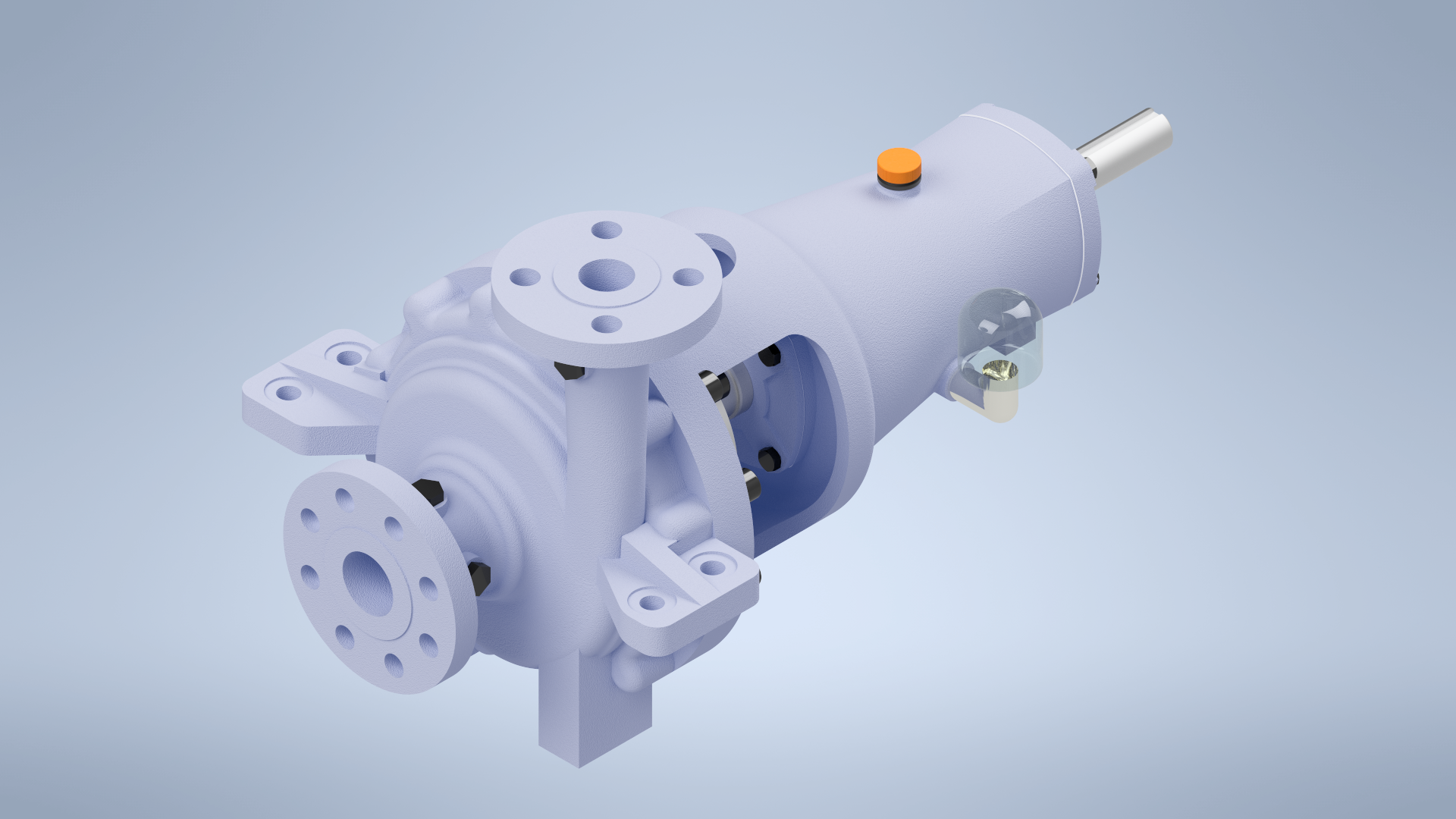

Rendered Image CFG Pump FDC-40-180(02).png

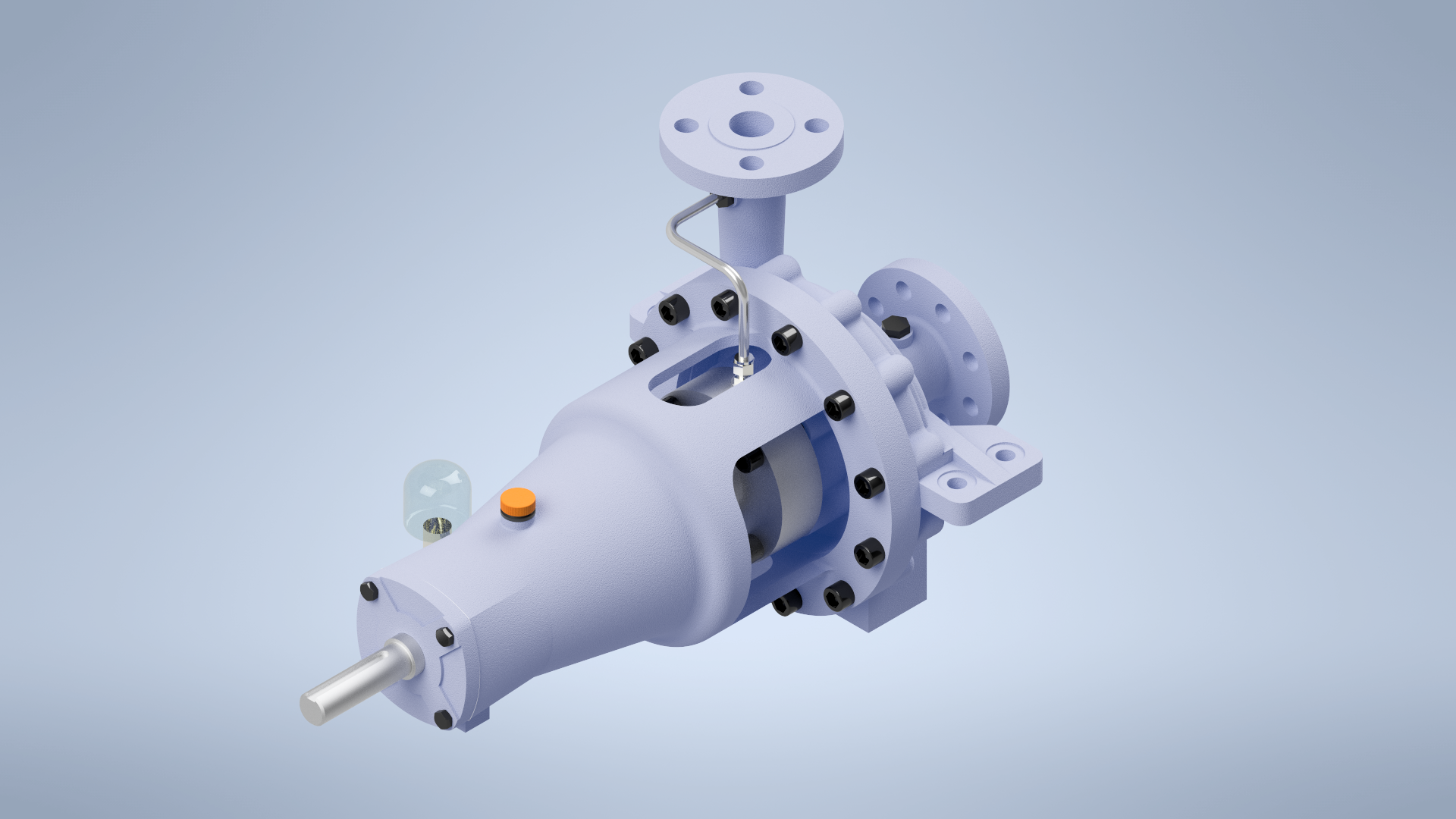

Rendered Image CFG Pump FDC-40-180(03).png

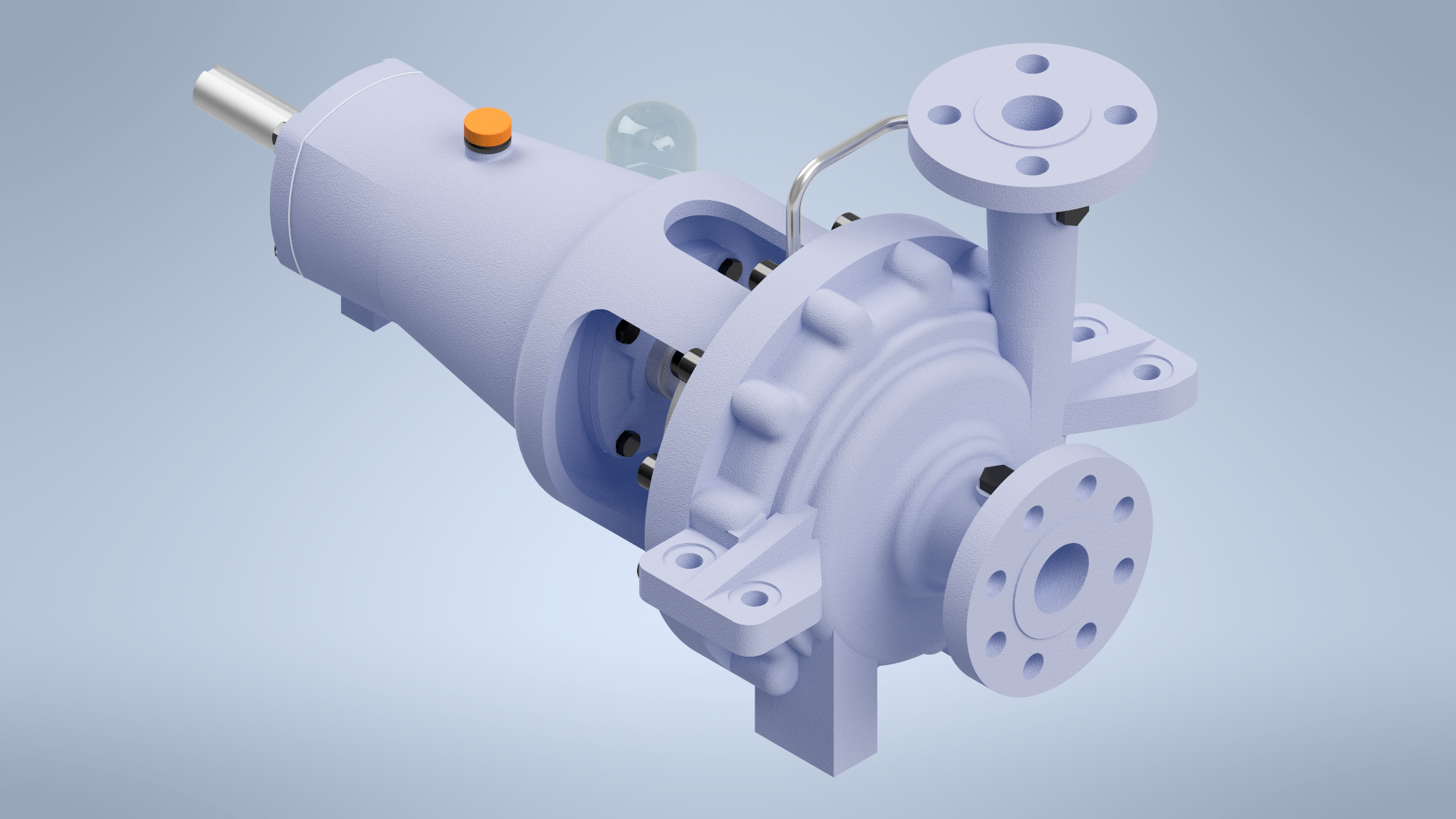

Rendered Image CFG Pump FDC-40-180(04).png

Engineered for Excellence in Petrochemical & Chemical Industries

The ROTODEL Centrifugal Pump Type "FDC" is built to API 610 standards, ensuring top-tier performance and reliability in demanding industrial environments. Designed with a volute casing and back-pull-out configuration, the FDC series enables easy maintenance and horizontal installation.

Feature	FDC-40-180	FDC-50-230
Size	50 x 40 NB	80 x 50 NB
Capacity	20 m³/hr	57 m³/hr
Head	50 meters	58 meters
Impeller Type	Closed Impeller	Closed Impeller
Viscosity	Up to 150 cSt	Up to 150 cSt
Temperature Range	-50°C to 400°C	-50°C to 400°C
Mounting	OH1 (Foot) / OH2 (Hanging)	OH1 (Foot) / OH2 (Hanging)
Rotation	Clockwise (from shaft end)	Clockwise (from shaft end)

Construction Materials

Casing & Impeller: ASTM A216 Gr.WCB /ASTM A351 Gr.CF8M / API 610 – 12th Edition Table H
Shaft: SAE-4140 / SS-316 / API 610 – 12th Edition Table H
Wear Ring: API 610 Compliant
Bearings: Roller Bearings and angular contact ball bearing in Tandem or back to Back Arrangement
Sealing: Mechanical Seal (API 682 – 4th Edition)
Seal Plan: Customizable based on application
Lubrication: Oil Bath

API 610 Compliance: Ensures global reliability and safety standards for petroleum and chemical industries.
Back Pull-Out Design: Simplifies maintenance without disturbing the piping system.
Wide Temperature Range: Operates efficiently from -50°C to 400°C, suitable for extreme environments.
Robust Material Selection: Corrosion-resistant materials like 316 SS and Haste Alloys for long service life.
Flexible Mounting Options: Available in both OH1 (foot-mounted) and OH2 (centerline-mounted) configurations.
High Efficiency: Closed impeller design ensures optimal hydraulic performance.
Custom Seal Plans: Tailored sealing solutions based on fluid and process requirements.
Versatile Fluid Handling: Compatible with a wide range of fluids including gasoline, diesel, acids, and distilled water.

Petrochemical Products
Chemical Handling
Cooling Systems

Petroleum	Chemicals	Water
Gasoline	Acids	Distilled Water
Diesel	Industrial Chemicals	Process Water
Kerosene	Naphtha
