TECHNICAL DATA | |
SIZE | UPTO 250 MM SUCTION & DISCHARGE |
CAPACITY | UP TO 660 M3/HR (11000 LPM) |
HEAD | UP TO 200 MTR. |
MATERIAL | C.I. / C.S. / BRONZE / SS-304 & 316 / SS-316 L / ALLOY-20 AND OTHER ALLOYS |

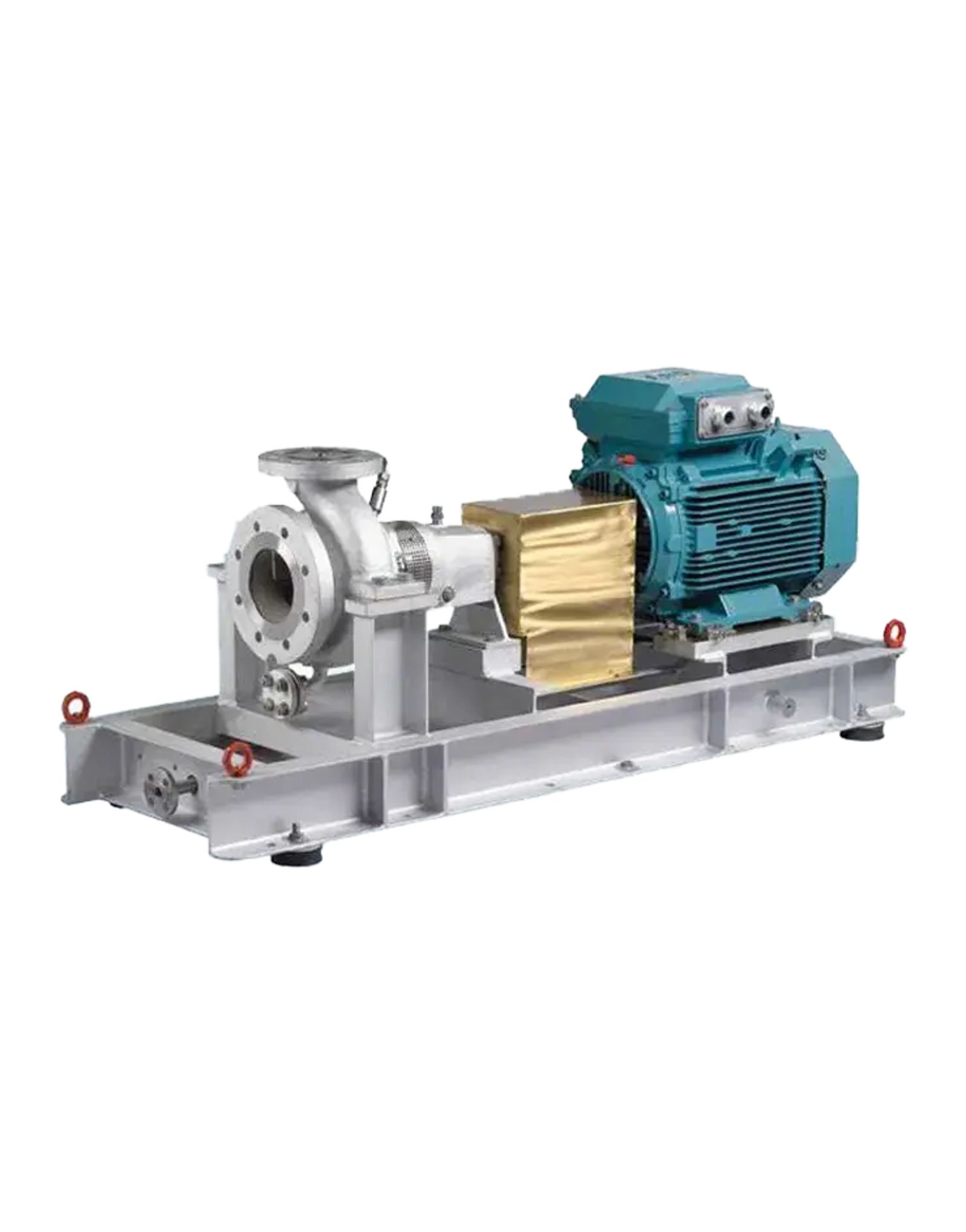

Rotodel Pumps make API compliant / ISO 13709 Pumps which are designed & manufactured to the latest edition, both horizontal as well as vertical pumps . Our API Pumps are used widely on offshore , oil & gas, petrochemicals & power plants in the most demanding applications. Rotodel Pumps makes the latest API design pumps are engineered & manufactured to customer specification & supplied on the most competitive lead time in the industry.
- Condensate Pumps
- Oil & Gas
- Rail Wagon Unloading
- Tank Lorry Filling
- LPG Filling / Gasoline Service
- Refinery / Petroleum
- Textile
- Process Industries
- Ethanol Blending
- Power
- Nuclear Plants
- Thermal Plants
- Petrochemicals
- Fertilizer Plants
- Defence
- Steel
- Diesel / Motor Spirit / Kerosene Decanting
- C.I - IS 210 FG - 20
- C.S - CARBON STEEL ASTM A216 GR. WCB
- ACI - ALLOY CAST IRON BR - IS - 318 GR.2
- WEAR RINGS (HARDENED)
- A-20 - CAST ALLOY - 20 ASTM A296 - CN - 7M
- 410 - CAST STAINLESS STEEL ASTM A296
- HAST. B - HASTALLOY B
- HAST. C - HASTALLOY C
- Centre line discharge.
- Centre line supported Casing (OH2) / Foot Type Casing (OH1).
- Back pull out design.
- Seal chamber to accommodate gland packing.
- Mechanical seals as per API-610/682 design. Can accommodate single/double/cartridge types.
- Confined gaskets.
- API Latest design.
- Dynamically balanced impeller limits vibration and ensures smooth operation over a wide flow range.
- Impeller lock nut with positive lock.
- Shaft threads protected.
- Bearing with cooling systems.
- Class 300 flanges.
- Gland plate with heating arrangement.
- RDZA range has been developed to meet the rigorous need of API Latest design.
- Heavy duty rotating assembly with dynamically balanced impeller, housed in heavy duty steel housing - fitted with antifriction ball and roller bearings.
- To minimize shaft misalignment and ensure longer bearing life, nozzles are designed for heavy loads.
- API 682 Seal Chamber accommodates a wide variety of seal configurations including dual pressurized and unpressurized cartridge types for the most severe service.
