Sizes | From 1/2" to 6" NB |
Capacity | From 5 LPM to 2082 LPM |
Pressure | Upto 21 kg/cm² (300 PSI) |
Viscosity | Upto 100000 CST |
Temperature | Upto 350 °C |
Mounting | Foot & Flange |
Direction of Rotation | Bi-Directional |
Sealing | + Oil Seal
|

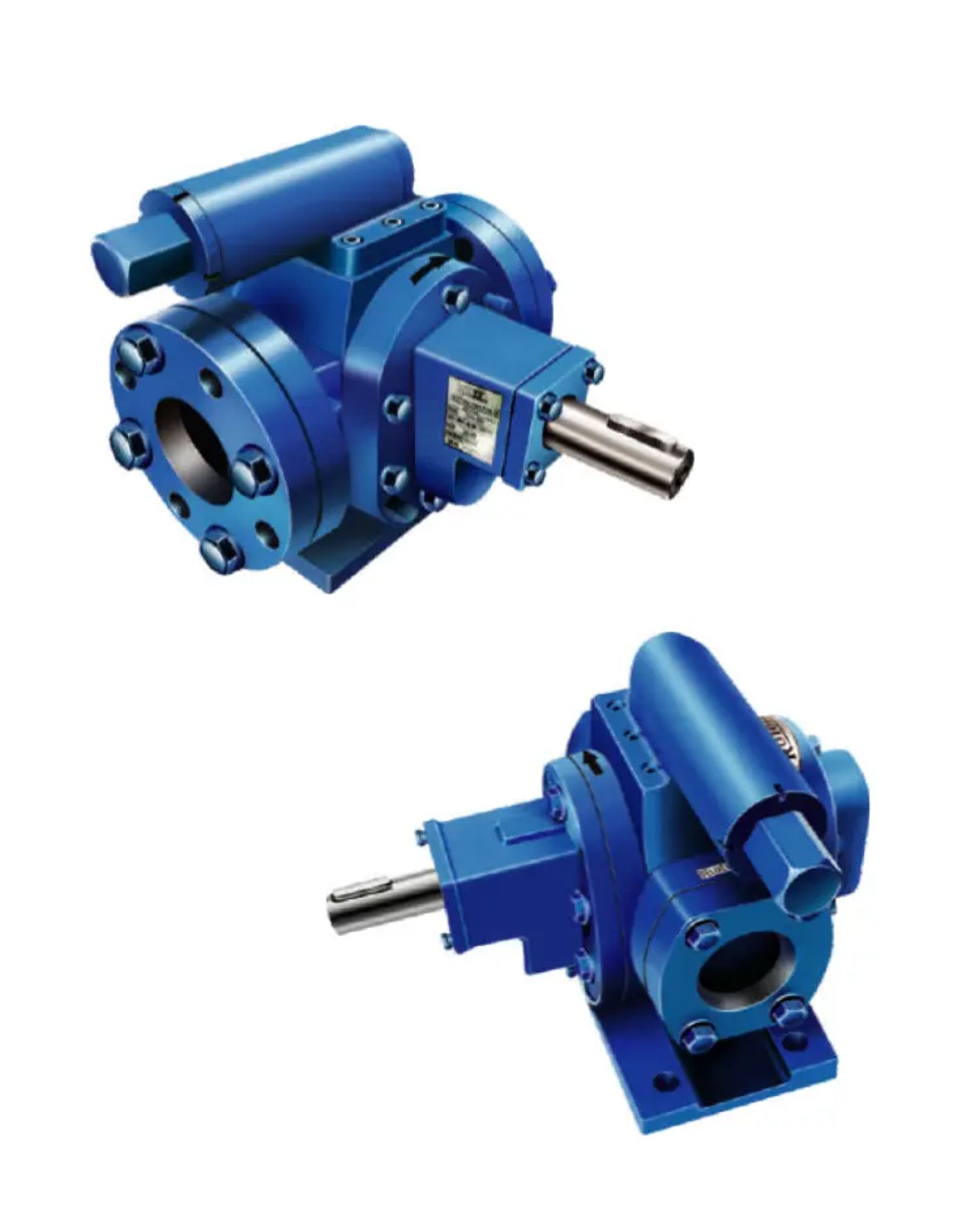

Rotodel Pumps rotary gear pump type RDNX/RDBX is twin gear are well known, widely accepted pd pumps in all industries for its efficient performance, operational reliability, compact design & noiseless operation. These pumps have outclassed conventional gear pumps & have also broken myth about screw pumps offering better overall performance at considerably reduced cost. Many imported gear & pumps are replaced with ROTODEL pumps in many plants. Popular range of this series of rotary screw gear pumps are re-designed & re-engineered to offer further simplicity with added reliability meeting international standards like API, JIS, DIN. This series offers an enlarged capacity range with the option of self-lubricated & independent lubricating jacketing construction.
Material of construction
Part Name | Material | Part Name | Material | Part Name | Material |
|---|---|---|---|---|---|
1. Pump Casing | CI/CS/SS | 10. Wear Plate | LTB2 | 19. Dowel Pin | EN31/SS 410 |
2. Front Cover | CI/CS/SS | 11. R.V. Piston | EN 8/SS | 20. Comp. Flange | MS/SS |
3. Back Cover | CI/CS/SS | 12. R.V. Spring | Spring Steel | 21. H/T Hex Bolt | EN 8/SS |
4. Gland Cover | CI/CS/SS | 13. R.V. AD Screw | EN 8/SS | 22. Inner Sleeve | EN 31-57 |
5. R.V. Body | CI/CS/SS | 14. Base Plate | MS | 23. V - Seal | VITON. RU. |
6. Rotor Shaft | EN 9/19/SS | 15. Coup. Guard | Aluminium | 24. Snap Ring | EN 31 |
7. Stator Shaft | EN 9/19/SS | 16. Coupling | Flexible | 25. C.S Screw | EN 24 |
8. Impeller Gear | EN 24/SS | 17. Coupling Key | EN 8/SS |
|
|
9. Needle Brg | IKO/INA | 18. Sealing Sys. | OS/MS/GP |
|
|
Turbine
Compressors
Coating Metal
Engine Construction
Filling Systems
Filter Systems
Generator Construction
Marine Engine Construction
Metal Forming Machines
Waste Oil Treatment
Heavy Transfer Systems
Heavy Electric Machines
Lubricant Manufacturers
Lubricating Oil Systems
Machine Building Industry
- Lube Oil
- Fuel Oil
- Seed Oil
- Hydraulic Oil
- Hardening Oil
- Olive Oil
- Gear Oil
- Heavy Oil
- Paraffin Waxes
- Hydraulic Fluids
- Peanut Oil
- Base Oil
- Lacquers
- Quenching Oil
- Cutting Oil
- Motor Oil
- Diesel Oil
- Paint
- Vegetable Oil
- Emulsions
- Paraffin
- Walnut Oil
Pump Model | Size | Port Size # (NB) | Capacity | Speed** (RPM) | ||
|---|---|---|---|---|---|---|
|
|
| LPM | US GPM | M3/Hr |
|
RDBX/NX 050 | S | 1/2" | 5.00 | 1.32 | 0.30 | 1440 |
RDBX/NX 050 | M | 1/2" | 8.30 | 2.21 | 0.50 | 1440 |
RDBX/NX 050 | L | 1/2" | 16.50 | 4.42 | 1.00 | 1440 |
RDBX/NX 100 | S | 1" | 25.00 | 6.60 | 1.50 | 1440 |
RDBX/NX 100 | M | 1" | 33.30 | 8.80 | 2.00 | 1440 |
RDBX/NX 100 | L | 1" | 42.00 | 11.00 | 2.50 | 1440 |
RDBX/NX 125 | S | 1 1/4" | 50.00 | 13.30 | 3.00 | 1440 |
RDBX/NX 125 | M | 1 1/4" | 60.00 | 16.70 | 3.60 | 1440 |
RDBX/NX 125 | L | 1 1/4" | 83.00 | 22.00 | 5.00 | 1440 |
RDBX/NX 150 | S | 1 1/2" | 100.00 | 26.50 | 6.00 | 1440 |
RDBX/NX 150 | M | 1 1/2" | 125.00 | 33.00 | 7.00 | 1440 |
RDBX/NX 150 | L | 1 1/2" | 150.00 | 39.80 | 9.00 | 1440 |
RDBX/NX 200 | S | 2" | 166.00 | 44.00 | 10.00 | 1440 |
RDBX/NX 200 | M | 2" | 200.00 | 53.00 | 12.00 | 1440 |
RDBX/NX 200 | L | 2" | 250.00 | 66.30 | 15.00 | 1440 |
RDBX/NX 250 | S | 2 1/2" | 300.00 | 80.00 | 18.00 | 1440 |
RDBX/NX 250 | M | 2 1/2" | 333.00 | 88.00 | 20.00 | 1440 |
RDBX/NX 250 | L | 2 1/2" | 350.00 | 93.00 | 21.00 | 1440 |
RDBX/NX 300 | S | 3" | 400.00 | 106.00 | 24.00 | 1440 |
RDBX/NX 300 | M | 3" | 450.00 | 119.00 | 27.00 | 1440 |
RDBX/NX 300 | L | 3" | 600.00 | 159.00 | 36.00 | 1440 |
RDBX/NX 400 | S | 4" | 700.00 | 185.00 | 42.00 | 1440 |
RDBX/NX 400 | M | 4" | 800.00 | 212.00 | 48.00 | 1440 |
RDBX/NX 400 | L | 4" | 900.00 | 238.00 | 54.00 | 1440 |
RDBX/NX 500 | S | 5" | 1000.00 | 265.00 | 60.00 | 1440 |
RDBX/NX 500 | M | 5" | 1200.00 | 318.00 | 72.00 | 1440 |
RDBX/NX 500 | L | 5" | 1400.00 | 371.00 | 84.00 | 1440 |
RDBX/NX 600 | S | 6" | 1666.00 | 441.00 | 100.00 | 1440 |
RDBX/NX 600 | M | 6" | 1915.00 | 508.00 | 115.00 | 1440 |
RDBX/NX 600 | L | 6" | 2082.00 | 552.00 | 125.00 | 1440 |
